Clamping Levers
The Clamping Levers are designed for manual adjustment during fixation and clamping. The levers are used in the production of machines, tools and equipment. We offer versions with internal and external screw-thread. Handle from zinc alloy and the mechanism made of steel. Levers with external thread M10*50 and M12*50 can also be supplied in orange.
Handling procedure: Raise the handle and turn it to a suitable position. When the lever is released, the return spring retracts the handle teeth.

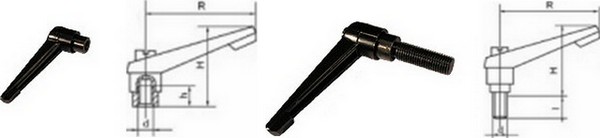

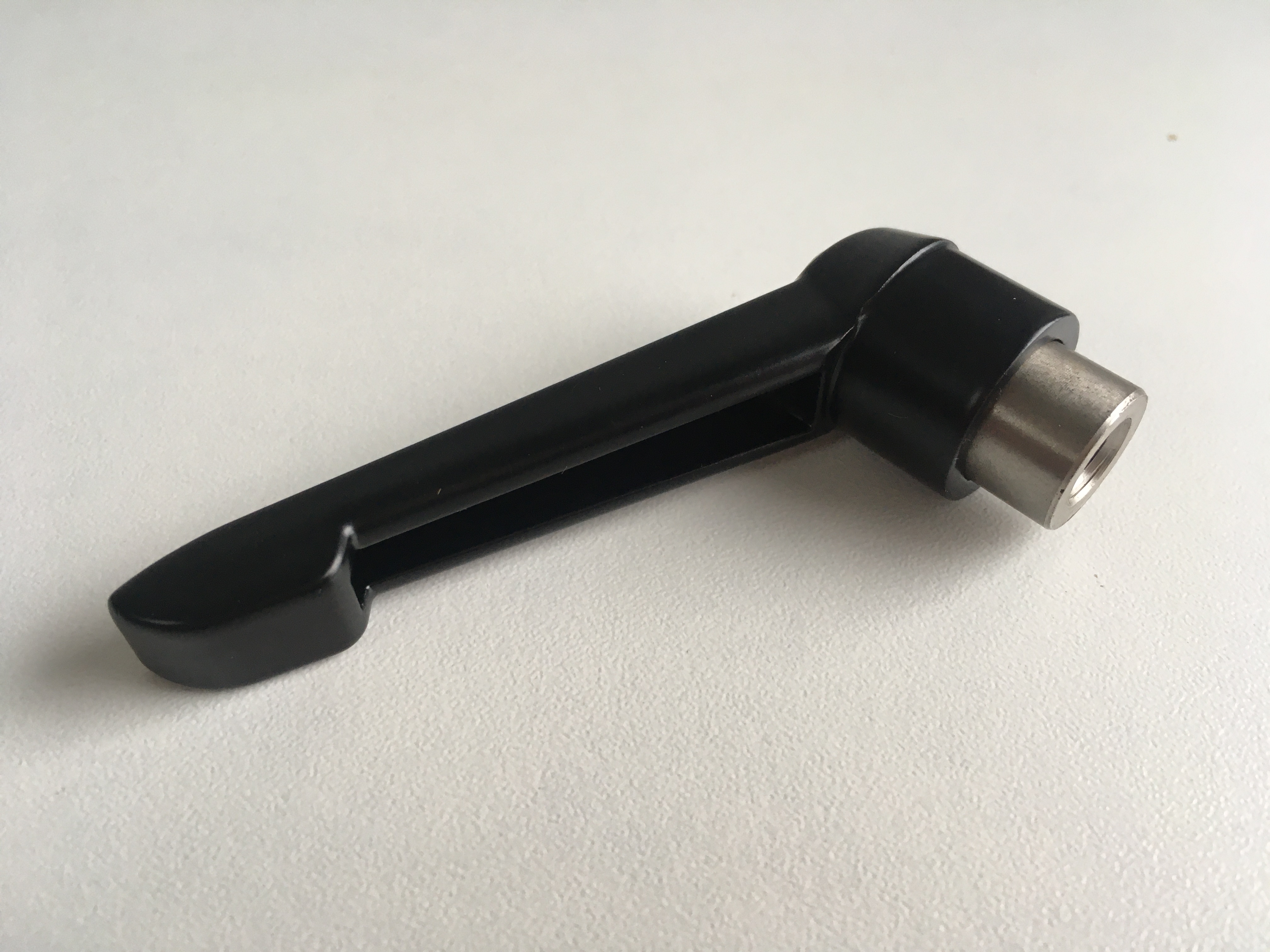

Internal thread| d | R | h | H | 1 pc | above 50 pc |
|---|
| M5 | 45 | 8 | 32 | 2,7 EUR | 2 EUR |
| M6 | 45 | 8 | 32 | 2,8 EUR | 2,1 EUR |
| M8 | 63 | 10 | 43 | 3,6 EUR | 2,7 EUR |
| M10 | 80 | 12 | 50 | 5,1 EUR | 3,9 EUR |
| M12 | 95 | 15 | 58 | 6,1 EUR | 4,6 EUR |
| M16 | 114 | 18 | 70 | 8,2 EUR | 6,2 EUR |

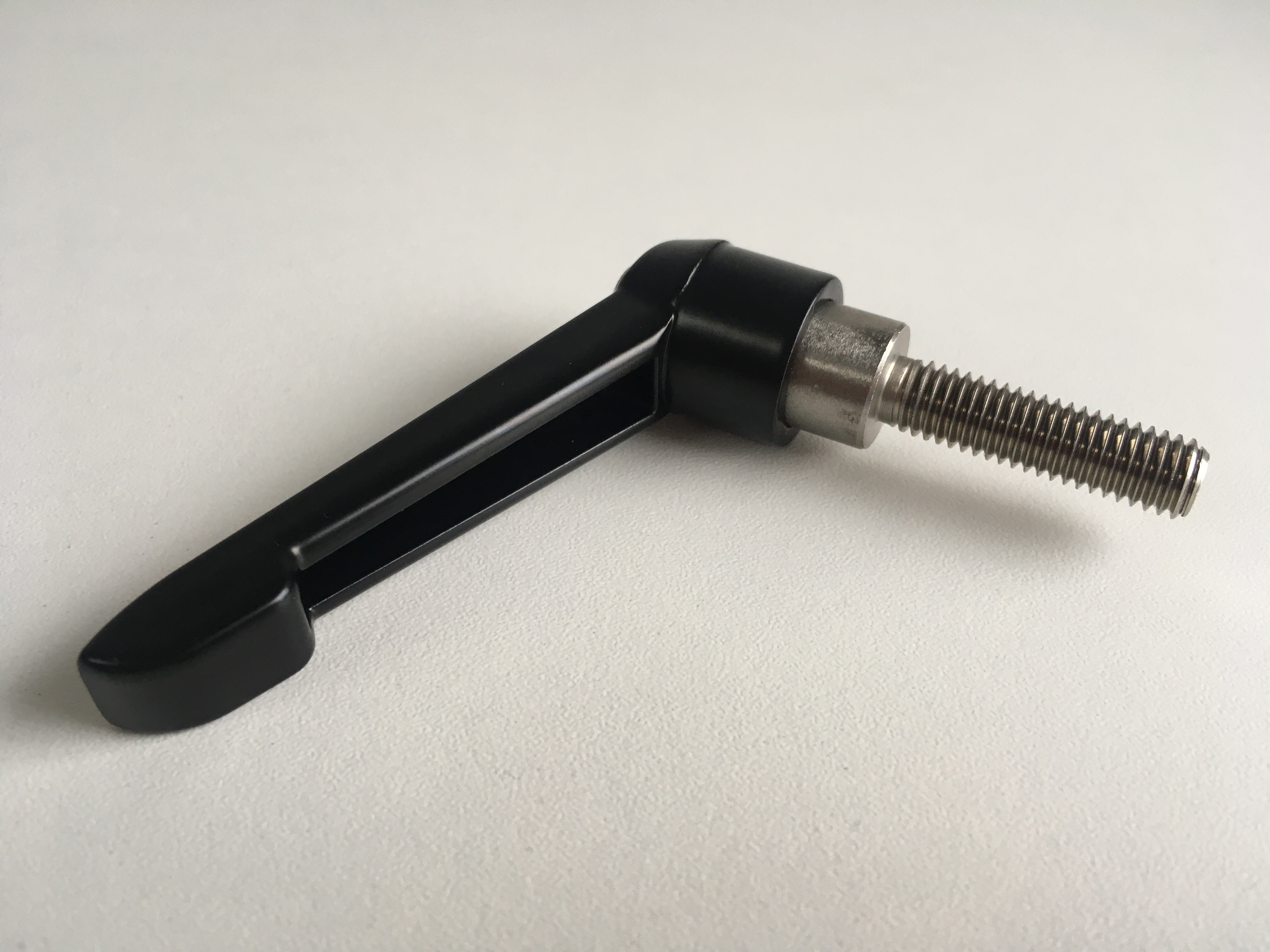

External thread| d | R | l | H | 1 pc | above 50 pc |
|---|
| M5 | 45 | 16 | 32 | 2,7 EUR | 2 EUR |
| M6 | 45 | 16,25,32 | 32 | 2,8 EUR | 2,1 EUR |
| M8 | 63 | 10,16,20,32,40,50 | 43 | 3,6 EUR | 2,7 EUR |
| M10 | 80 | 20,50,63 | 50 | 5,1 EUR | 3,9 EUR |
| M12 | 95 | 25,50,63 | 58 | 6,1 EUR | 4,6 EUR |
| M16 | 114 | 50,63 | 70 | 8,2 EUR | 6,2 EUR |
Prices are without VAT (always for one product item). If specified order number, please, it will add it to the selected type of goods. We will be glad to send you any quantity. In case of large subscriptions, please contact us.
